Digitus DN-91350-1

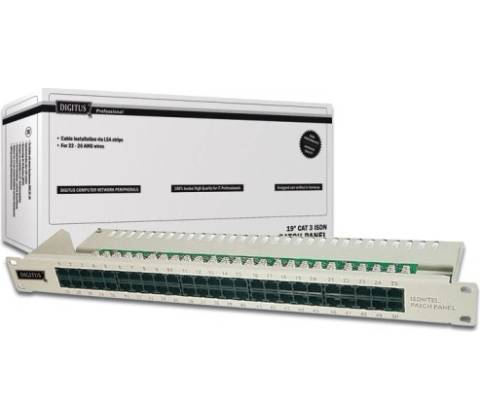

DIGITUS 19 CAT 3 ISDN patch panel, unshielded 50-port RJ45, 8P4C, LSA, 1U Color grey RAL 7035

Best performance and link quality for your network

Suitable for 483mm (19) Rack Mount

Material housing: SECC, 1,5mm Electrogalvanized, Cold-rolled Steel accc. EN1.4301, UNS S30400, AISI 304 and LMSAD110

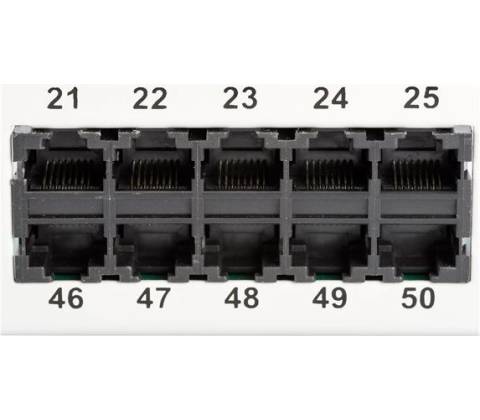

Unshielded RJ45 jacks

• Material contacts: Phosphor bronze
• Contacts coating: Nickel, gold plated 0,3µ

Cable installation via LSA strips, color coded according to EIA/TIA 568 A -amp; B

• Material IDC Terminal: Phosphor Bronze with 50µ Tin plated over 60µ Nickel plated
• Material PCB: FR4, UL 94V-0, multilayer 1,45mm thickness
• Insertion force: ? 30N
• Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5)
• Operating temperature: -20°C ... +70°C
• Current carrying capacity: 1A at 50°C

Isolation resistance -gt; 500MOhm

• Category: CAT 3
• Ports: 50
• Color: light grey, RAL 7035
• Units: 1

Výrobek je dodáván s manuálem pouze v anglickém jazyce.
